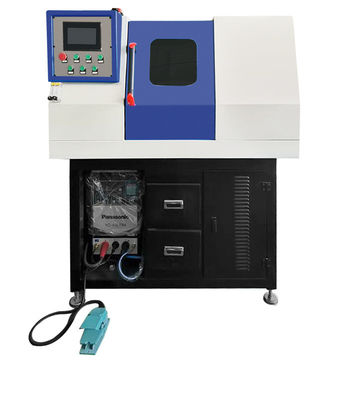

Single Station Semi Automatic TIG Welding Machine For Manifold Fabrication
  • name
  • name
  • name

Single Station Semi Automatic TIG Welding Machine For Manifold Fabrication

MOQ: 1 unit
Price: Negotiable
Standard Packaging: Wooden Case Packing
Delivery Period: 15-30days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000 unit/month
Details Information
Product Description
Detail Information
Place of Origin
Foshan City ,China
Brand Name
Olang
Certification
ISO
Model Number
OL-11
Power Source:
AC/DC
Weight:
18kg
Duty Cycle:
60%
Cooling Method:
Fan
Efficiency:
85%
No-Load Voltage:
56V
Highlight:

Semi Automatic Tig Welding Machine

,

Single Station Tig Welding Machine

Product Description

Single-Station Semi-Automatic TIG Welding Machine for Manifold Fabrication





Product characteristics:

  • Single Dedicated Workstation: Allows operators to focus on one part at a time, ensuring precision and consistency in each weld.

  • Semi-Automation: Automates certain parts of the process (such as movement or alignment) while allowing operators to manually control other aspects, which provides flexibility and reduces operator fatigue.

  • Easy Operation: User-friendly controls and interfaces make it easy to set up and operate, even with minimal training.

  • Consistent Weld Quality: Ensures stable welding parameters, reducing variability and producing high-quality, repeatable welds.

  • Compact Design: Typically takes up less space, making it suitable for workshops or production areas with limited space.

  • Cost-Effective Solution: Provides an affordable alternative to fully automated systems while still improving productivity and quality.





TECHNICALPARAMETER



Model OL-PA-W51-2000 OL-PA-W53-2000



welding power supply



 YC-400TX4 YC-400TX4

welding station



 1 1



adaptive products



 Welding Equipment for 15-50mm Stainless Steel Circumferential Joints with Press-Fit and Ring Compression Welding Equipment for 15-50mm Stainless Steel Circumferential Joints with Press-Fit and Ring Compression



applicable thickness



 0.4-2mm 0.4-2mm



welding current



 4-400A 4-400A



Cooling water



 Purified water  Purified water



work mode



 DC/pulse DC/pulse



Equipment size



 1400mmx900mmx1700mm 1400mmx900mmx1700mm



Power Supply



 15w/380v/50hz 15w/380v/50hz











Application



  • Aerospace and Shipbuilding Industry: Degreasing, degreasing and cleaning, paint removal, rust removal.

  • Automobile Manufacturing: Degreasing, cleaning of tire molds, removing coatings from galvanized sheets before welding.

  • Electronics and Semiconductor Industry: Cleaning of silicon wafers.

  • Marine, Railway, and Bridge Industry: Rust removal, paint removal.

  • Chemical, Food, and Medical Industries: Cleaning small holes in thin metal filter plates.

  • Building Cleaning: General cleaning of buildings.

  • Nuclear Power Plant Reactor Pipe Cleaning: Cleaning of pipes inside nuclear reactor systems.

Single Station Semi Automatic TIG Welding Machine For Manifold Fabrication 0

Factory work shop
Single Station Semi Automatic TIG Welding Machine For Manifold Fabrication 1



Package:
Single Station Semi Automatic TIG Welding Machine For Manifold Fabrication 2

Exhibiton:
Single Station Semi Automatic TIG Welding Machine For Manifold Fabrication 3

Certificate
Single Station Semi Automatic TIG Welding Machine For Manifold Fabrication 4
Single Station Semi Automatic TIG Welding Machine For Manifold Fabrication 5









4-400A
