FWM-100 Pneumatic Flange Welding Machine for DN50-DN1000 Pipes

MOQ: 1 unit
Price: Negotiable
Standard Packaging: Wooden Case Packing
Delivery Period: 15-30days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000 unit/month
Details Information
Product Description
Detail Information
Place of Origin
Foshan City ,China
Brand Name
Olang
Certification
ISO
Model Number
OL-41
Clamping System:
Pneumatic
Model:
FWM-100
Welding Head Vertical Adjustment:
±15mm
Welding Diameter Range:
DN50-DN1000
Welding Head Rotation Angle:
0-360 Degrees
Power Source:
Electric
Highlight:

Durable Flange Welding Machine

,

Precision Flange Welding Machine

,

Precision Pipe To Pipe Welding

Product Description
Durable Precision Flange Welding Machine With Automatic Wire Feeders For Pipe To Pipe
Product Specifications
Attribute Value
Clamping System Pneumatic
Model FWM-100
Welding Head Vertical Adjustment ±15mm
Welding Diameter Range DN50-DN1000
Welding Head Rotation Angle 0-360 degrees
Power Source Electric
Product Features
  • Full Weld Cycle Control: Programmable control of the entire welding cycle from preheating to post-weld cooling for optimal weld quality and material preservation.
  • Precision Rotation and Oscillation: Ensures consistent movement during welding for even application around the entire circumference.
  • Automatic Wire Feeders: Provides constant, reliable supply of filler material to prevent wire stoppage or weld bead inconsistencies.
  • Robust Arc Force Control: Maintains arc stability under various welding conditions for consistent results with challenging materials.
Technical Parameters
Model OL-A-FLG-400 OL-A-FLG-1500 OL-A-FLG-3000 OL-A-FLG-6000
Welding Application Pipe-to-Pipe Welding, Pipe-to-Flange Welding, Elbow-to-Flange Welding, Pipe-to-Tee Welding
Welding Power Supply YC-400TX4 YC-400TX4 YC-400TX4 YC-400TX4
Welding Torch Working Distance 400mm 1500mm 3000mm 6000mm
Work Torch Angle 0-90 degree
Applicable Thickness 0.8-3mm
Positional Center Hole 170mm (Accept customization)
Flange OD 20-500mm
Chuck Center Height 380mm
Elbow Rotation Radius <380mm
Swinger Swing Range: 0-20mm
Swing Speed: 0-20mm/min
Dwell Time: 0-5 seconds
Wire Feeding Machine Compatible with Wire Diameters: 0.8mm, 1.0mm, 1.2mm, 1.6mm
Power supply: 15kw/380v/50hz
Applications
  • Aerospace and Shipbuilding Industry: Degreasing, cleaning, paint removal, rust removal
  • Automobile Manufacturing: Degreasing, cleaning of tire molds, removing coatings from galvanized sheets
  • Electronics and Semiconductor Industry: Cleaning of silicon wafers
  • Marine, Railway, and Bridge Industry: Rust removal, paint removal
  • Chemical, Food, and Medical Industries: Cleaning small holes in thin metal filter plates
  • Building Cleaning: General cleaning of buildings
  • Nuclear Power Plant Reactor Pipe Cleaning: Cleaning of pipes inside nuclear reactor systems

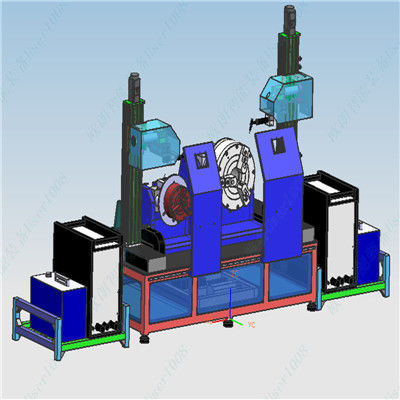

FWM-100 Pneumatic Flange Welding Machine for DN50-DN1000 Pipes 0
Factory Workshop
FWM-100 Pneumatic Flange Welding Machine for DN50-DN1000 Pipes 1
FWM-100 Pneumatic Flange Welding Machine for DN50-DN1000 Pipes 2
Package
FWM-100 Pneumatic Flange Welding Machine for DN50-DN1000 Pipes 3
Exhibition
Certifications
FWM-100 Pneumatic Flange Welding Machine for DN50-DN1000 Pipes 4 FWM-100 Pneumatic Flange Welding Machine for DN50-DN1000 Pipes 5
