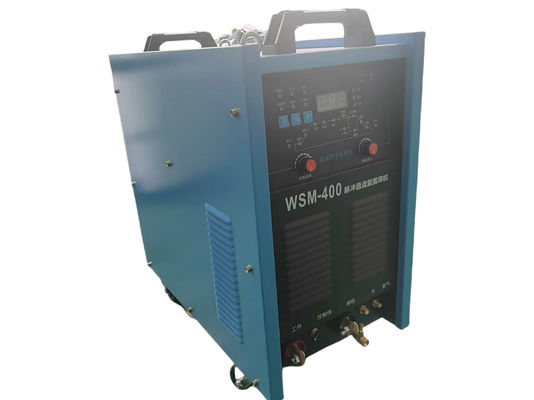

New TIG Welding Machine For Three Phase On Stainless Steel Aluminum

MOQ: 1 unit
Price: Negotiable
Standard Packaging: Wooden Case Packing
Delivery Period: 15-30days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000 unit/month
Details Information
Product Description
Detail Information
Place of Origin
Foshan City ,China
Brand Name
Olang
Certification
ISO
Model Number
OL-119
Motor Type:
TIG Welding
Condition:
New
Pulse Frequency:
50-60Hz
Rated Voltage:
380V
Output Amps:
160A
Arcing:
High Frequency
Highlight:

Stainless Steel TIG Welding Machine

,

Aluminum TIG Welding Machine

,

Three Phase TIG Welding Machine

Product Description

New TIG Welding Machine for Three Phase on Stainless Steel Aluminum



1. Good Protection & Stable Welding

  • Uses argon gas shielding to prevent oxidation and ensure high weld strength and corrosion resistance.

  • Stable arc with excellent control, making it ideal for precision welding applications.

2. Pulse Welding Capability

  • Offers pulse welding function, which reduces heat input and minimizes deformation in thin materials.

3. DC and AC Welding Options

  • DC TIG welding is used for stainless steel, carbon steel, and copper.

  • AC TIG welding is suitable for aluminum and aluminum alloys, effectively removing oxide layers.





TECHNICALPARAMETER



M o d e l TIG-250T TIG-300T WSM-400F WSM-500F



Supply voltage(V)



 Single-phase 220V±10% Three-phase 220V/380V±10%

Three-phase

380V±10%

Three-phase

380V±10%



Rated frequency(Hz) )

 50/60Hz 50/60Hz 50/60Hz 50/60Hz



Rated supply energy(KVA)(KVA)

 8.6 4.5 18 24



Maximum load voltage(V)

 60 71 72 76



Rated load sustained rate(%)

 60% 60% 60% 60%



Rated output current(A)

 10-160 10-240 10-400 10-500



Rated pulse current(A)

     400 500



Base current(A)

     10-400 10-500



Impulse frequency(Hz)

     0.1-99.9 0.1-99.9



Thrust current(A)

     20-150 20-150

Exterior dimension(mm) Weight(Kg







 410*175*335 7.9





440*205*355 10.5

New TIG Welding Machine For Three Phase On Stainless Steel Aluminum 0







510*252*456 21.5

New TIG Welding Machine For Three Phase On Stainless Steel Aluminum 1





530*300*532 28.2













Application



  • Aerospace and Shipbuilding Industry: Degreasing, degreasing and cleaning, paint removal, rust removal.

  • Automobile Manufacturing: Degreasing, cleaning of tire molds, removing coatings from galvanized sheets before welding.

  • Electronics and Semiconductor Industry: Cleaning of silicon wafers.

  • Marine, Railway, and Bridge Industry: Rust removal, paint removal.

  • Chemical, Food, and Medical Industries: Cleaning small holes in thin metal filter plates.

  • Building Cleaning: General cleaning of buildings.

  • Nuclear Power Plant Reactor Pipe Cleaning: Cleaning of pipes inside nuclear reactor systems.

New TIG Welding Machine For Three Phase On Stainless Steel Aluminum 2

Factory work shop
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum 3



Package:
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum 4

Exhibiton:
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum 5

New TIG Welding Machine For Three Phase On Stainless Steel Aluminum 6

Certificate
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum 7
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum 8
